Model No.	BMPH40
Displacement	40cc
Speed	1500/1650rpm
Torque	55/76 Nm
Max Power	12.5/16.5KW
Max Flow	55/60LPM
Highlight	4 Bolts Flange Gerotor Hydraulic Motor, Charlynn H Series Gerotor Hydraulic Motor, 1" Key Shaft Gerotor Hydraulic Motor

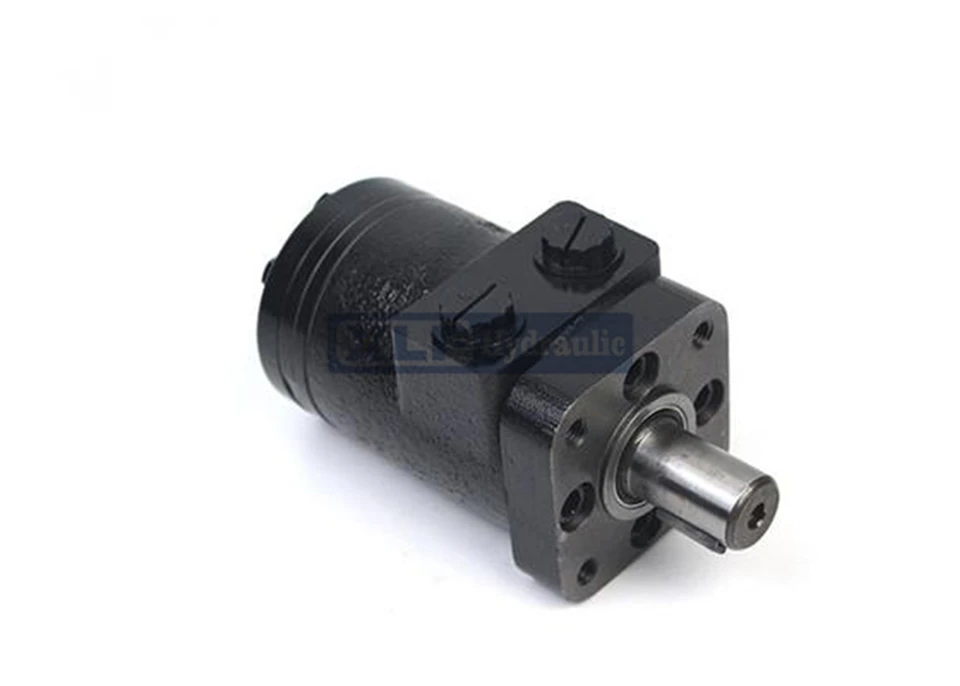

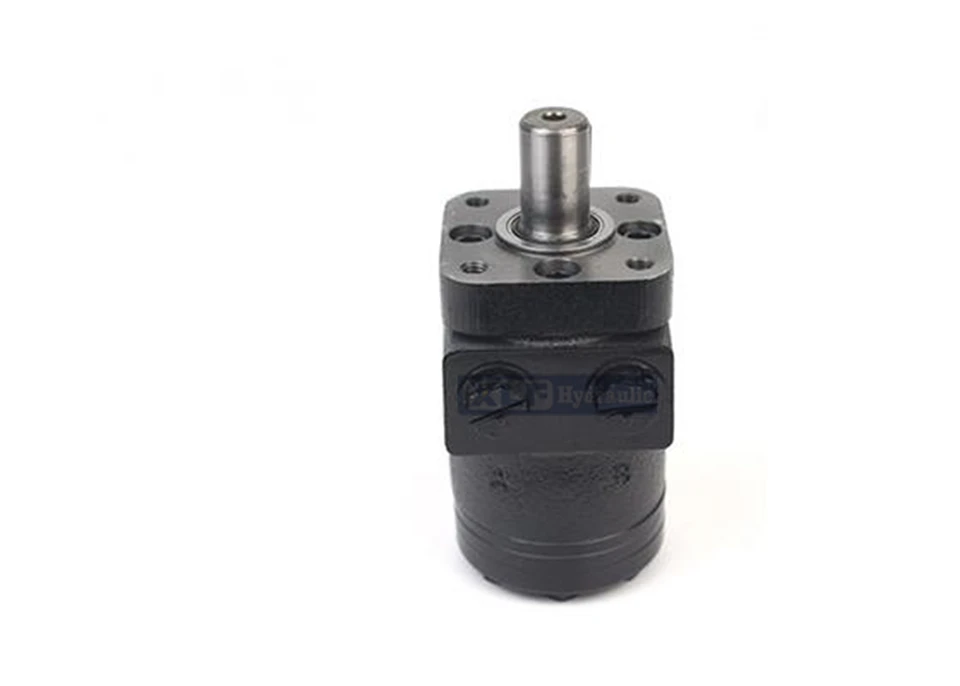

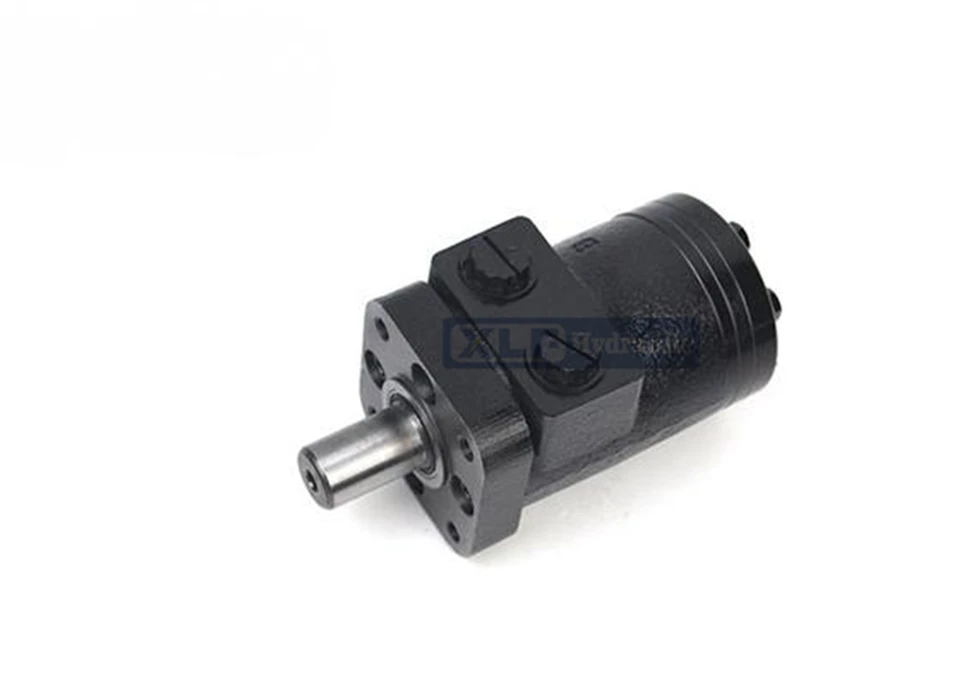

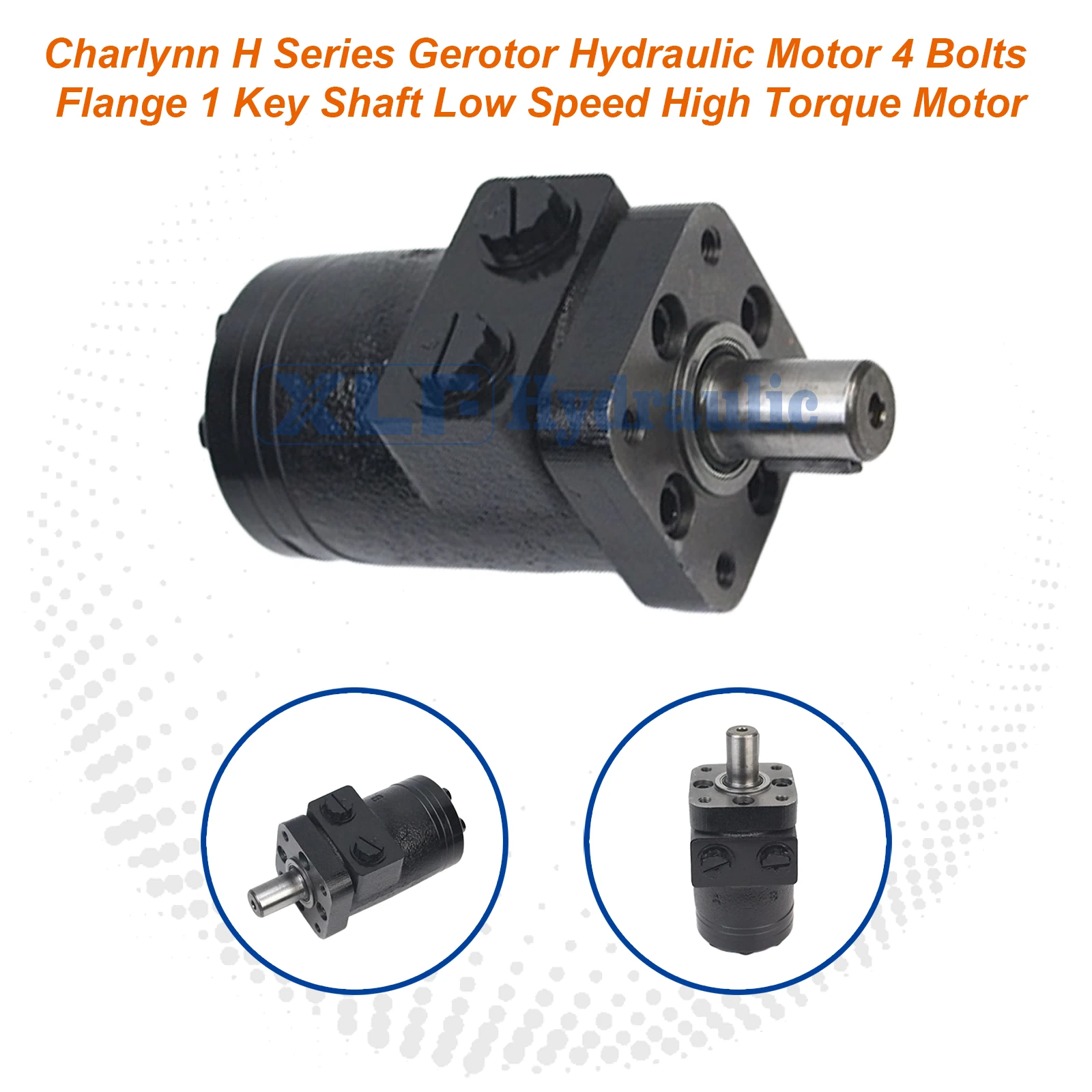

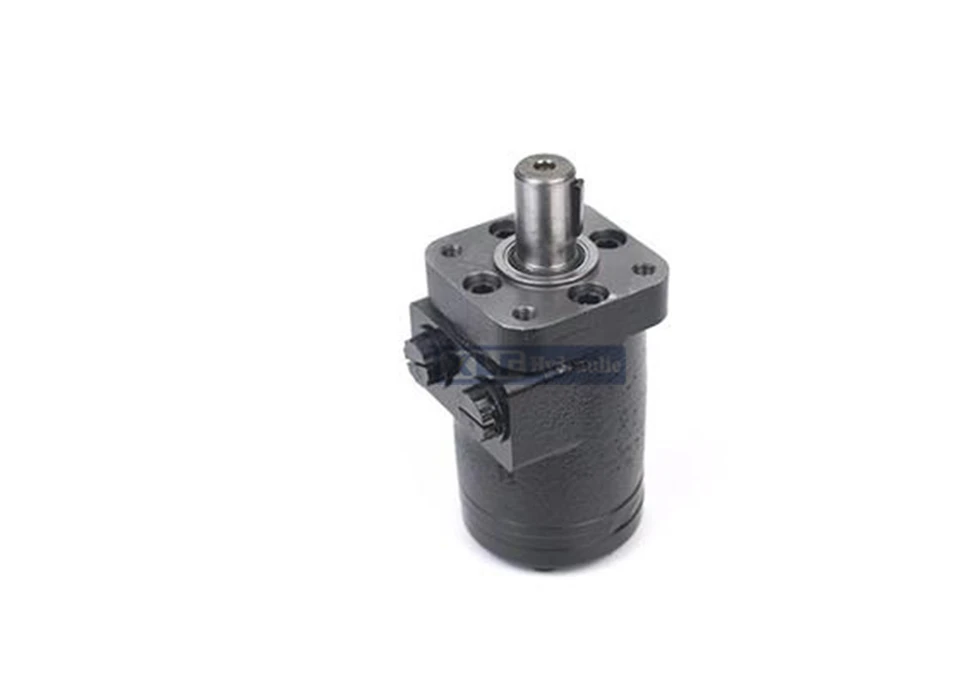

Charlynn® Series H low-speed high-torque (LSHT) gerotor hydraulic motors, a product under Eaton, are drive solutions specifically designed for demanding applications with limited space and high power density requirements. This series of motors is renowned for their compact structure, excellent low-speed stability, and extremely high starting torque, making them particularly suitable for occasions requiring direct driving of heavy loads. The standard 4-bolt flange mounting and robust 1-inch flat key output shaft ensure convenient installation, reliable connection, and rigid transmission with the load.

1. Excellent power density
? Compact and robust: Among hydraulic motors providing equivalent torque, the H series has a smaller volume and weight, saving equipment space.
? 4-bolt flange: Compared with the 2-bolt flange, it provides stronger torsional rigidity and connection stability, suitable for working conditions with impact or vibration.
2. True low-speed and high-torque performance
? Smooth start-stop and operation: Adopting precision cycloidal gear pairs and slide valve distribution, the torque pulsation is extremely small, enabling smooth operation even at very low speeds without "crawling" phenomenon.
? High starting torque: High starting efficiency, can provide starting torque close to the theoretical value, easily cope with heavy-load starting.
3. Reliable, durable and flexible in application
? Sturdy 1-inch keyed shaft: Can bear large radial and axial loads, allowing the motor to directly drive the load, simplifying the transmission structure.
? Wide adaptability: Relatively tolerant of oil cleanliness, can work reliably in various harsh industrial environments.

With its characteristics of compactness, high torque, and easy installation, the H-series motor with this configuration is an ideal choice for the following applications:
• Material handling equipment: driving the steering mechanism of forklifts, driving wheels of electric pallet trucks, and direct driving of conveyor line rollers.
• Construction machinery: slewing drive of small excavators, driving of mixing drums of concrete mixers, and light winches.
• Agricultural machinery: lifting and swinging drive of harvester headers, metering devices of seeders, and transmission systems of fertilizer applicators.
• Special industrial equipment: rotary worktables of machine tools, valve actuators, mixers, and cable reels.
